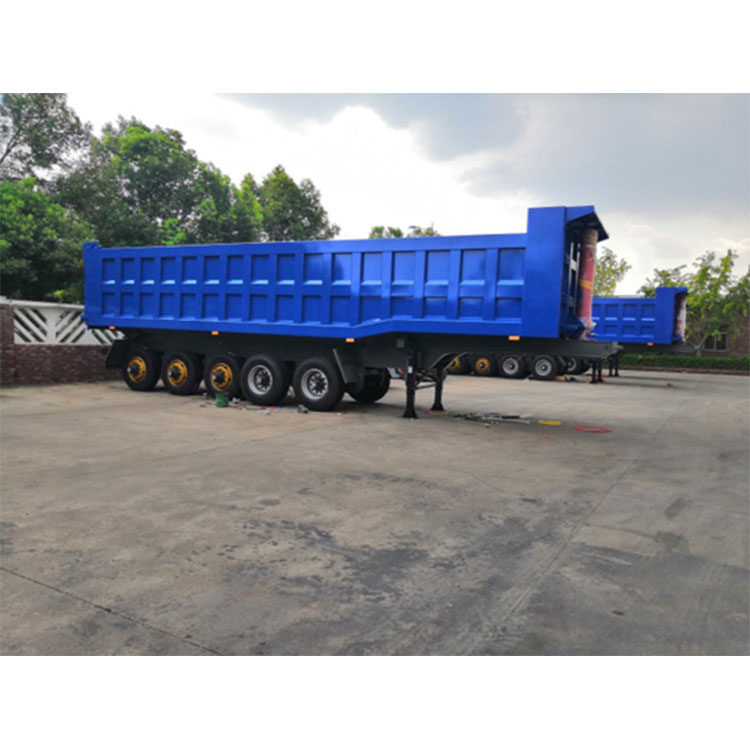

Lima Gandar Dump Trailer

Lima treler separuh dump gandar yang paling terkenal pada tahun 2024 terdiri daripada casis kereta, mekanisme mengangkat hidraulik, peranti pengangkut kuasa, dan petak kargo. Dalam Kejuruteraan Awam, adalah perkara biasa untuk bekerjasama dengan penggali, pemuat, penghantar tali pinggang, dan lain -lain untuk membentuk garis pengeluaran, pengangkutan, dan pemunggahan untuk memuatkan dan memunggah tanah, pasir, dan bahan longgar.

Hantar Pertanyaan

Penerangan Produk

Five axle dump semi trailer, due to the automatic tilting of the loading carriage at a certain angle for unloading, greatly saves unloading time and labor, shortens transportation cycle, improves production efficiency, reduces transportation costs, and indicates loading capacity.

Product Parameter

FIVE AXLES DUTY TIPPER TRAILER 75TON
Tare Weight	16000kgs
Payload	75000kgs
Overall Width	2500mm
Overall Length	11500mm
All inner dimension and outside dimension are subject to final drawing
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes.
Axle	Rear 3 axle, Heavy duty axle, 16 Ton capacity, 3 pcs
Axle	First 2 axle, heavy duty axle, 13Ton capacity, 2 pcs
Suspension	Heavy duty mechanical suspension for rear 3 axle
Leaf Spring	Steel leaf spring for rear 3 axle
Air suspension	Air suspension with air bag for first 2 axle, first 2 axle are liftable
King Pin	JOST brand 3.5” Bolt-in King Pin
Landing Gear	JOST brand two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.0-22.5 steel wheel rim, 12pcs; 11.75-22.5 steel wheel rim, 4pcs
Tire	12R22.5 tubeless tire, 12pcs; 385/65R22.5 super single tyre, 4pcs
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint, color confirmed by customer.
Accessories	One standard tool box
Tipper box
Volume	40CBM, inner dimension 9.8x2.4x1.7m.
Thickness and material	By high tensile steel T700, side 4mm, floor 6mm
Hydraulic system	HYVA hydraulic system HYVA
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

Product Description

SINOCTM TIPPER SEMI TRAILER adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition. For our tipper trailers, we can design the U type, also called half pipe/ Square type / container flatbed dumper, the capacity range is from 30 ton to 100 ton.
